BIOS

°Ù°½UEFI

ÄÚ´æ

2xDDR5ÄÚ´æ²å²Û,Ö§³ÖSODIMM,max 64G

²Ù×÷ϵͳ

 ÷è÷ë/ͳÐÅ/Win10/Linux OS

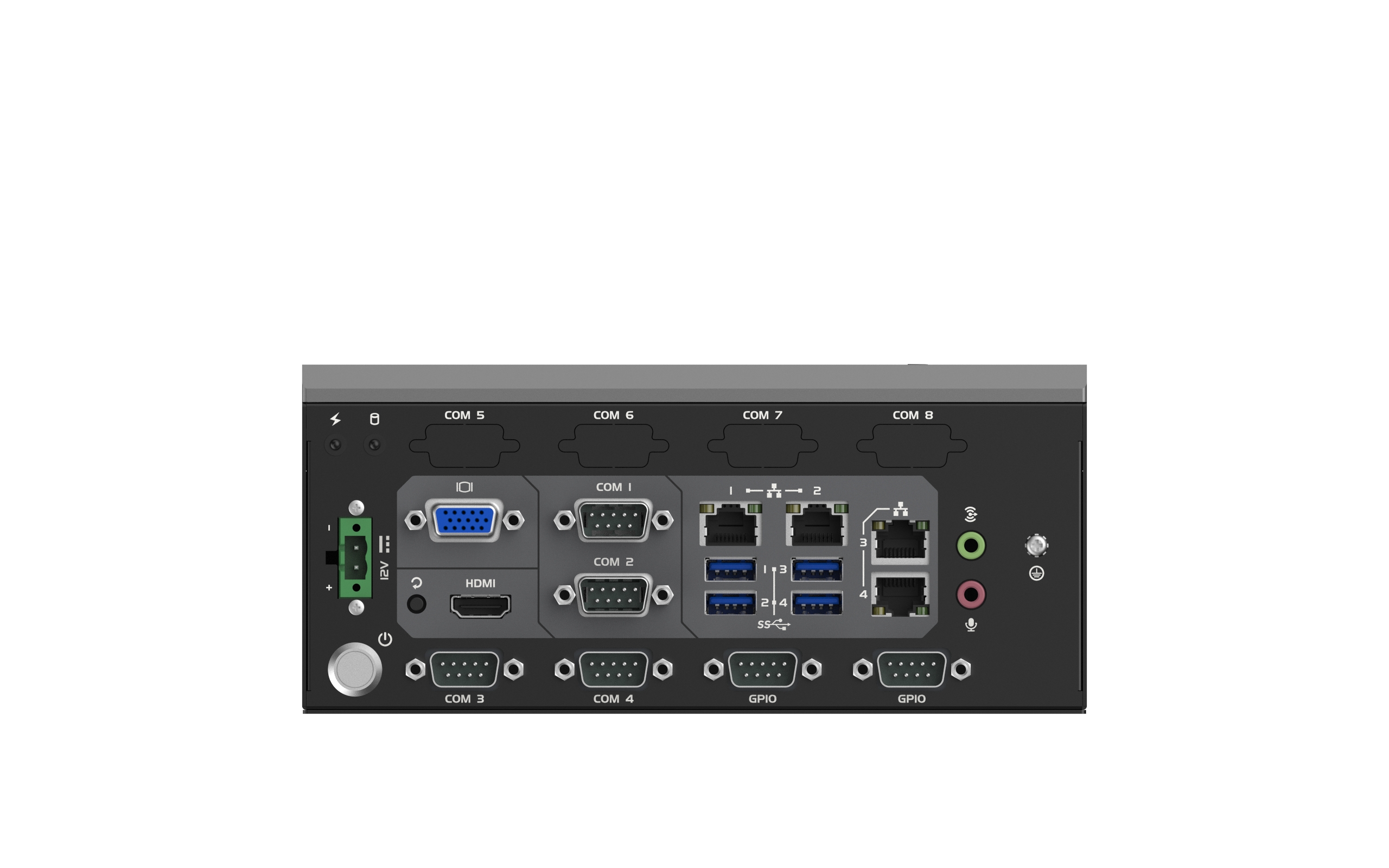

I/O ½Ó¿Ú

USB

4xUSB3.0,°åÄÚ1xUSB2.0 type A½Ó¿Ú for USB Dongle

COM

2xRS232/422/485£¬2xRS232(ĬÈÏ)£¬4xRS232(¿ÉÑ¡)

GPIO

2xDB9 8bit GPIO

LED

1xPower, 1xHDD

À©´ó

PCIe/M.2/Mini-PCIe

1¸öM.2 Key-E for Wifi/BT

1x M.2 B-key 3052£¬´øMicro SIM£¬Ö§³Ö5GÄ£¿é

ÏÔʾ

Interface

1xVGA, 1xHDMI

´æ´¢

Storage Device

2 x SATA3.0, 1xM.2 SSD NVME(PCIE5.0 X4)

񙮵

Audio IC

ÉîÀÙSN6186

Audio Interface

1xMic-in, 1xLine-out

ÒÔÌ«Íø

LAN IC

2xYT6801£¨Ä¬ÈÏ£©, 1xYT6801+ 1xYT8531H-CA(¿ÉÑ¡£©

Interface

4xRJ45

µçÔ´

Power Input

12V, DC-in,Ö§³ÖÀ´µç×ÔÆô

Power Interface

2-Pole Phoenix DC plug in

ÆäËü

Watchdog Timer

1 to 255 sec./min. per step

TCM

¿ÉÑ¡

ÎïÀí²ÎÊý

Dimensions

200*89*205 mm

Mounting

Desk/Wall-mounting

¹¤×÷»·¾³

Operating Temp.

0¡æ~60¡æ

Storage Temp.

-40~85¡æ

Humidity

10%~85% Humidity, non-condensing

Shock

With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration

Vibration

With SSD:2Grms, IEC 60068-2-64, random£¬5~500Hz£¬1 hr/axis
